• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel
• Tires, P255/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome
• Bumper, rear chrome with rear bumper corner steps
• CornerStep, rear bumper
• Grille surround, chrome (Not included when (SXL) Elevation Edition is ordered.)
• Headlamps, halogen projector
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Tailgate and bed rail protection caps, top
• Tailgate, locking utilizes same key as ignition and door
• Door handles, Black

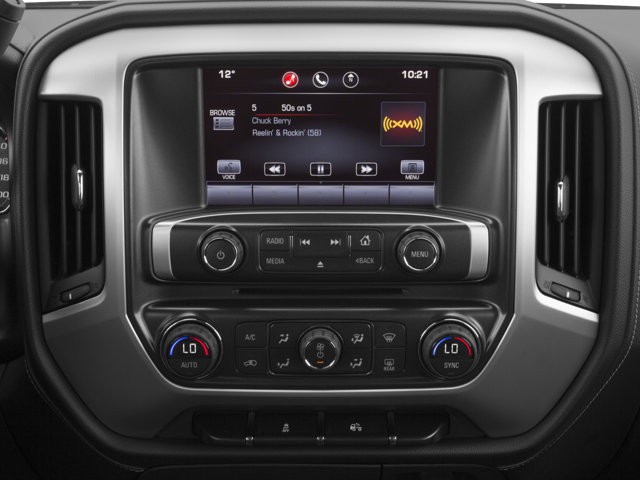

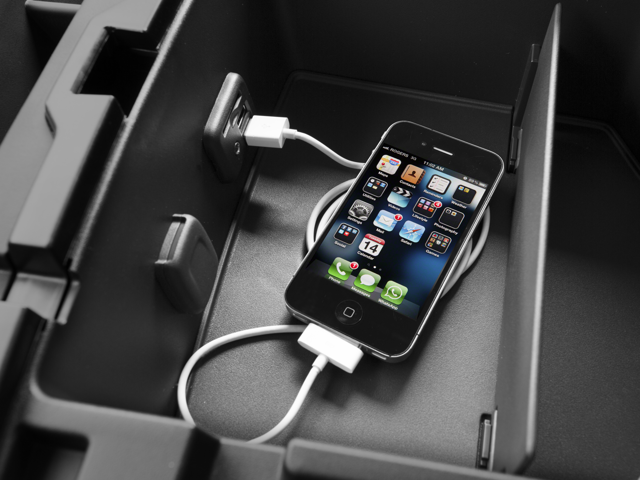

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports, auxiliary jack and SD card slot
• SiriusXM Satellite Radio, delete
• 6-speaker audio system

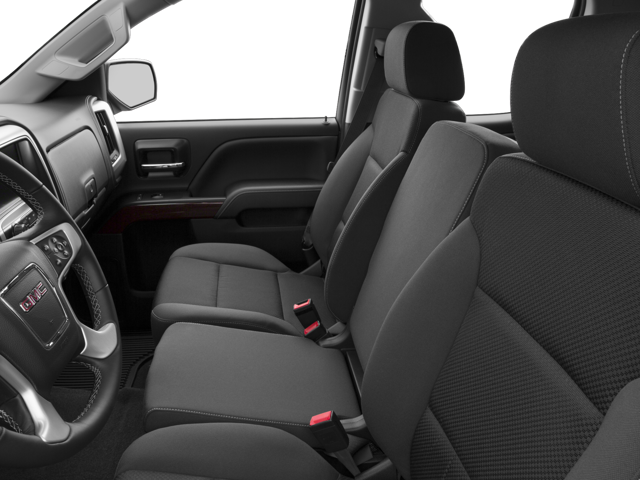

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• Floor covering, Graphite-colored rubberized-vinyl (Not included when (SXL) Elevation Edition is ordered.)

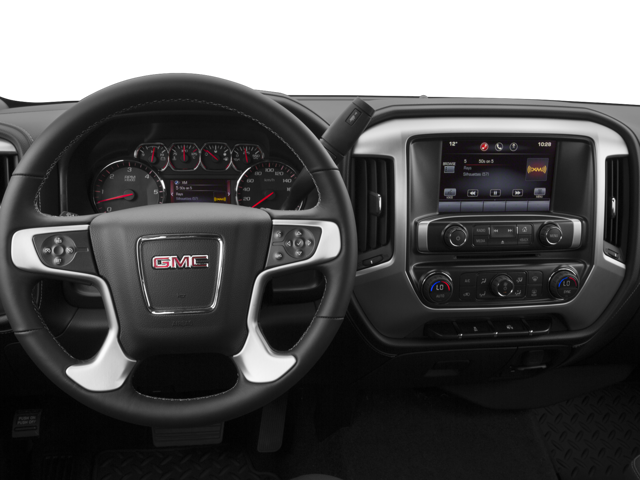

• Steering column, manual Tilt-Wheel
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information

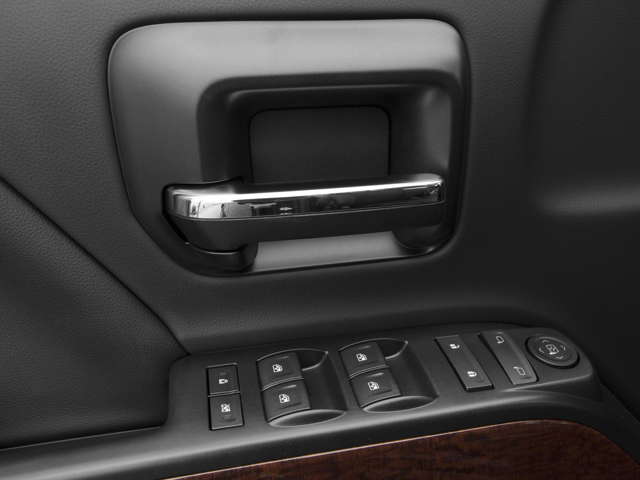

• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar
• OnStar Delete

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

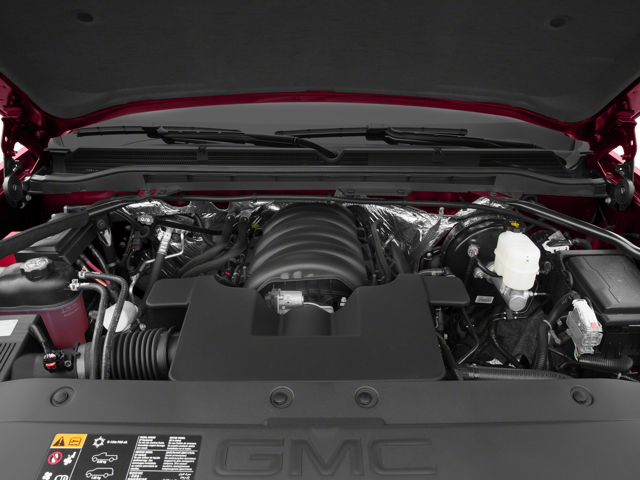

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• Preferred Equipment Group 1SA
• Heavy-Duty Rear Locking Differential
• Wheels: 17" x 8" Painted Steel
• Wheels: 20" x 9" Painted Black
• 40/20/40 Front Split Bench Seat
• Cloth Seat Trim
• Radio: AM/FM Stereo w/4.2" Diagonal Color Display
• Radio: AM/FM Stereo w/IntelliLink
• Color-Keyed Carpeting w/Rubberized Vinyl Floor Mats
• Front License Plate Kit
• 6" Rectangular Black Tubular Assist Steps (LPO)
• Sierra Body Color Accented Grille (LPO)
• Wheel Locks (Set of 4) (LPO)
• Elevation Edition
• Heavy Duty Suspension
• Trailering Equipment
• Graphite-Colored Rubberized-Vinyl Floor Covering
• OnStar 6 Months Directions & Connections Plan
• 110-Volt AC Power Outlet
• Front Halogen Fog Lamps
• LED Cargo Box Lighting
• Deep-Tinted Glass
• Front Frame-Mounted Black Recovery Hooks
• Power Windows w/Driver Express Up & Down
• Solar Absorbing Tinted Glass
• Remote Keyless Entry
• Body Color Bodyside Moldings
• Single-Zone Air Conditioning
• Body Color Door Handles
• Black Manual Outside Mirrors
• Black Power-Adjustable Heated Outside Mirrors
• Body-Color Mirror Caps
• 150 Amp Alternator
• Auxiliary External Transmission Oil Cooler
• Manual Tilt Wheel Steering Column
• 3.5" Diagonal Monochromatic Display DIC
• Chrome Grille Surround
• Body Color Front Bumper
• Body Color Rear Bumper w/Cornersteps
• OnStar w/4G LTE
• Halogen Projector Headlamps w/LED Signature
• 4-Wheel Disc Brakes

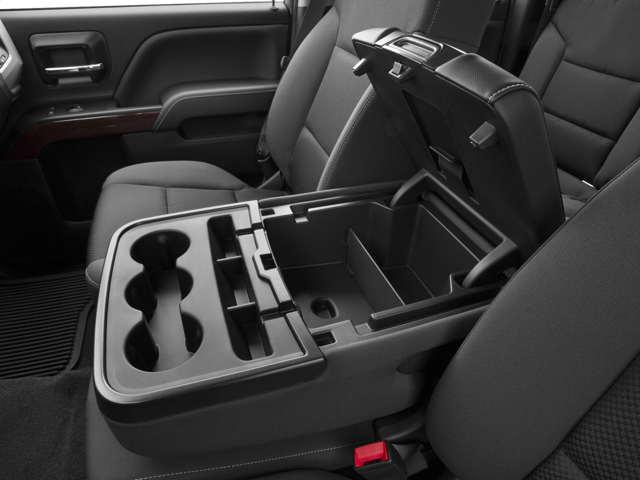

• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Speed-sensing steering
• Speed control
• Rear step bumper
• Rear seat center armrest
• Rear reading lights
• Radio data system
• Power windows
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• Bumpers: chrome
• Brake assist
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 23
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3850
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 560
• Maximum Trailering Capacity (lbs): 9500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3850
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3850
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall w/o rear bumper (in): 229.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.87
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.47
• Ground Clearance, Rear (in): 8.47
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.00
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary
• Vehicle Name: GMC Sierra 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.5
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.0
