• Bright front bumper
• Bright rear bumper w/step pads
• Front air dam
• Bright grille
• Body color upper front fascia
• Pwr heated fold-away exterior mirrors
• Variable speed intermittent windshield wipers
• Cargo lamp
• Trailer tow wiring-inc: 4-pin connector
• Removable tailgate

• Cloth 40/20/40 split bench seat
• Folding rear seat
• Floor carpeting
• Front floor mats
• Floor tunnel insulation
• Tilt steering column

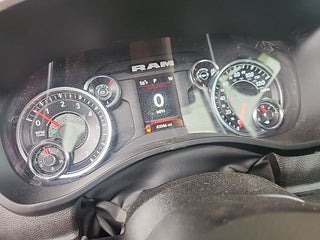

• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Pwr windows w/driver one-touch down
• Pwr locks
• Remote keyless entry
• Speed control
• Air conditioning
• AM/FM stereo w/CD player/CD changer control-inc: (4) speakers
• Day/night rearview mirror
• Overhead console w/trip computer
• Cigar lighter
• 12V pwr outlet
• Glove box lamp
• Passenger assist handle
• Passenger side visor vanity mirror
• Rear underseat storage compartment

• Rear-wheel anti-lock brakes
• Driver/front passenger "Next Generation" airbags w/passenger on/off switch
• Front shoulder belt height adjusters
• Dual note horn

4.7L V8 "MAGNUM" ENGINE

• (STD)

• Quick Order Package 24G SLT
• 3.92 Axle Ratio
• 17" x 8" Chrome Clad Steel Wheels
• Cloth 40/20/40 Split Bench Seat
• AM/FM Compact Disc w/Changer Control
• 40/20/40 Split Bench Seat
• Folding Rear Seat
• EVAP Control System
• Electronically Controlled Throttle
• Next Generation Engine Controller
• 4 Speakers
• Compass
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Tilt steering wheel
• Speed control
• Remote keyless entry
• Rear step bumper
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Outside temperature display
• Illuminated entry
• Heated door mirrors
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• CD player
• Bumpers: chrome
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 2816
• Curb Weight - Rear (lbs): 2304
• Gross Vehicle Weight Rating Cap (lbs): 6650
• Gross Combined Wt Rating (lbs): 9000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4350
• Dead Weight Hitch - Max Tongue Wt. (lbs): 435
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4350
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 435
• Suspension
• Suspension Type - Front: Independent SLA
• Suspension Type - Rear: Leaf spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.8 x 0.87
• Tires
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.5
• Height, Overall (in): 74.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 143.0
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 7.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 75.9
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 70.2
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 60.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.1
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.4
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 64.6
• Summary
• Vehicle Name: Dodge Ram 1500
• Body Style: Quad Cab 6.3' Bed
• Body Code: 140.5" WB
